PHM0M3B009

3AA / 220lm / 11h

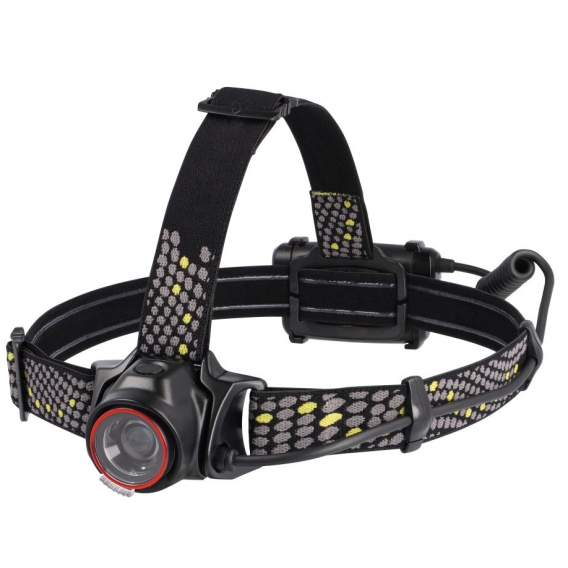

Helmet-Compatible Polymer Headlight, Sliding Diffuser for Focused or Flood Lighting

Available in 2 colours

free projection angle
sliding diffuser

Attach to Industrial or Climbing by 3M Adhesive Mounts

Attach to Bike Helmets by Velcro Straps
Red Rear Light

Features -

Specifications +

ANSI +

XP-G2 Cree White LED - Up to 220 Lumens
Additional 5mm Red LED for Night Vision
Sliding Diffuser for Immediate Wide Beam Light for Close Vision
6 Lighting Modes satisfy Different Lighting NeedsCree LED - HIGH, MEDIUM, LOW & 2Hz FLASHINGRed LED - ON & 2Hz FLASHING
Red Rear Light on Battery Case for Safety Indication
Attach to Industrial, Climbing or Bike Helmets by 3M Adhesive Mounts, Headband Helmet Clips or by Velcro Straps [Optional]
Free Projection Angle
Water Resistant

Operation
Headlight
CREE LED OUTPUT
HIGH > MEDIUM > LOW > 2Hz FLASHING > OFF
[Press 3 seconds to switch to RED LED OUTPUT]
[Press OFF if stays at any mode over 3 seconds]
RED LED OUTPUT
ON > 2Hz FLASHING > OFF
[Press OFF if stays at any mode over 3 seconds]
[Return to CREE HIGH if stays at OFF over 3 seconds]
Rear Light
ON > 2Hz FLASHING > OFF
Battery Type
3 x 1.5V AA Alkaline Batteries [Included]
Bulb Type
1 x XP-G2 Cree White LED
1 x Ø5mm Red LED
Accessoies
For Industrial or Climbing Helmet
3M Adhesive Mount [RV0012, Order Separately]
Headband Helmet Clips [RV0020, Order Separately]
For Bike Helmet
Velcro Strap [RS0022, Order Separately]
Size
Headlight 35mm x 82mm x 40mm
Battery Case 53mm x 76mm x 34mm
Weight
189g [With Batteries]

ANSI
CREE HIGH	220 LUMENS	1850cd	85m	11h
CREE MED	100 LUMENS	900cd	60m	21h
CREE LOW	20 LUMENS	190cd	25m	180h
CREE 2Hz FLASHING	NA	NA	NA	180h
RED ON	4 LUMENS	15cd	8m	120h
RED 2Hz FLASHING	NA	NA	NA	180h
REAR LIGHT ON	NA	NA	NA	250h
REAR LIGHT 2Hz FLASHING	NA	NA	NA	300h

* Flashing mode specifications cannot be measured by ANSI FL1 standard.
Flashing mode runtime is based on measurement of battery capacity change only.

PHM0M3B009

3AA / 220lm / 11h
